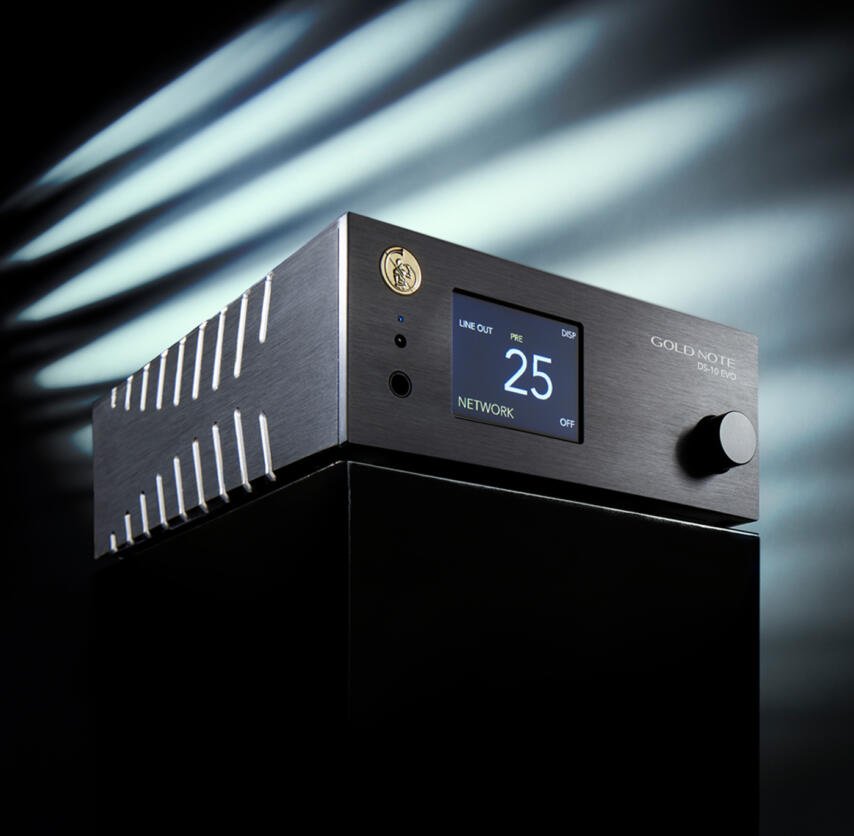

Gold Note DS-10 EVO Streaming DAC
The new frontiers of digital music
The DS-10 EVO is a versatile and innovative streaming DAC, equipped with a state-of-the-art D/A converter, a line preamplifier and a headphone amplifier.
The DS-10 EVO features a unique function that sets it apart from any other DAC, making it extremely flexible: it is possible to modify the DAC profile to adapt it to the music being played, without degrading the audio signal and maintaining the highest quality, by acting on the de-emphasis parameters, on the low-pass digital filters and the DSD filter. These parameters can be adjusted in real-time during playback, quickly and intuitively thanks to the dedicated menu and the TFT display.
With the DS-10 EVO, you can stream music via Roon, Airplay, Tidal, MQA, Qobuz, Spotify, vTuner and Deezer, access a collection of digital music stored locally on a NAS or USB flash drive, or from a smartphone or tablet, via the GN Control app (available for free on iOS and Android) and directly from the Tidal application thanks to the implementation of Tidal Connect. Furthermore, the DS-10 EVO is Roon Ready and compatible with all UPnP/DLNA and Airplay 2.0 services. It can be connected to the network using Wi-Fi or Ethernet port and, at the same time, to a power amplifier or active speakers to explore the limitless possibilities of high-resolution music.
ROON READY
Being Roon Ready means that Gold Note uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise.
TIDAL CONNECT
With Tidal Connect you can stream music to your DS-1000 EVO directly from the Tidal app (available on iOS and Android).
AUDIRVĀNA
Plays with Audirvāna products are certified to play music from Audirvāna over USB or network with the best level of integration and audio performance.
The new frontiers of digital music
The DS-10 EVO is a versatile and innovative streaming DAC, equipped with a state-of-the-art D/A converter, a line preamplifier and a headphone amplifier.
The DS-10 EVO features a unique function that sets it apart from any other DAC, making it extremely flexible: it is possible to modify the DAC profile to adapt it to the music being played, without degrading the audio signal and maintaining the highest quality, by acting on the de-emphasis parameters, on the low-pass digital filters and the DSD filter. These parameters can be adjusted in real-time during playback, quickly and intuitively thanks to the dedicated menu and the TFT display.
With the DS-10 EVO, you can stream music via Roon, Airplay, Tidal, MQA, Qobuz, Spotify, vTuner and Deezer, access a collection of digital music stored locally on a NAS or USB flash drive, or from a smartphone or tablet, via the GN Control app (available for free on iOS and Android) and directly from the Tidal application thanks to the implementation of Tidal Connect. Furthermore, the DS-10 EVO is Roon Ready and compatible with all UPnP/DLNA and Airplay 2.0 services. It can be connected to the network using Wi-Fi or Ethernet port and, at the same time, to a power amplifier or active speakers to explore the limitless possibilities of high-resolution music.
ROON READY
Being Roon Ready means that Gold Note uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise.
TIDAL CONNECT
With Tidal Connect you can stream music to your DS-1000 EVO directly from the Tidal app (available on iOS and Android).
AUDIRVĀNA
Plays with Audirvāna products are certified to play music from Audirvāna over USB or network with the best level of integration and audio performance.
The new frontiers of digital music
The DS-10 EVO is a versatile and innovative streaming DAC, equipped with a state-of-the-art D/A converter, a line preamplifier and a headphone amplifier.
The DS-10 EVO features a unique function that sets it apart from any other DAC, making it extremely flexible: it is possible to modify the DAC profile to adapt it to the music being played, without degrading the audio signal and maintaining the highest quality, by acting on the de-emphasis parameters, on the low-pass digital filters and the DSD filter. These parameters can be adjusted in real-time during playback, quickly and intuitively thanks to the dedicated menu and the TFT display.
With the DS-10 EVO, you can stream music via Roon, Airplay, Tidal, MQA, Qobuz, Spotify, vTuner and Deezer, access a collection of digital music stored locally on a NAS or USB flash drive, or from a smartphone or tablet, via the GN Control app (available for free on iOS and Android) and directly from the Tidal application thanks to the implementation of Tidal Connect. Furthermore, the DS-10 EVO is Roon Ready and compatible with all UPnP/DLNA and Airplay 2.0 services. It can be connected to the network using Wi-Fi or Ethernet port and, at the same time, to a power amplifier or active speakers to explore the limitless possibilities of high-resolution music.
ROON READY
Being Roon Ready means that Gold Note uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise.
TIDAL CONNECT
With Tidal Connect you can stream music to your DS-1000 EVO directly from the Tidal app (available on iOS and Android).
AUDIRVĀNA
Plays with Audirvāna products are certified to play music from Audirvāna over USB or network with the best level of integration and audio performance.
-
In addition to its numerous connectivity options, it also features high-definition Bluetooth and a professional headphone output. The DS-10 EVO supports high-resolution files, such as MQA and DSD (up to DSD512), to provide an unparalleled digital music listening experience. The DS-10 EVO’s technology is housed in a compact aluminium chassis, making this unit the perfect addition to any modern High-End audio system.
On the 2.8″ TFT display, it is possible to quickly view all the available functions and manage them via the SKC (Single Knob Control) knob located on the front panel, the Gold Note remote control or the dedicated GN Control App.
GN Control shows on a smartphone or tablet all the information regarding the track being played, such as the format and resolution, while the user experience is super intuitive thanks to a cutting-edge interface and the possibility of performing firmware updates directly from the internet.
Roon Ready devices have integrated Roon streaming technology and are certified by Roon Labs to provide the highest level of quality and performance in high-resolution streaming. -
D/A CONVERTER CHIP AKM AK4493
FREQUENCY RESPONSE 20Hz-20kHz +/-0.1dB
THD (Total Harmonic Distortion) 0.001% max
SIGNAL TO NOISE RATIO 125dB
DYNAMIC RANGE 120dB
PREAMP STAGE VOLUME CONTROL Enabled/Disabled
NETWORK CONNECTIVITY LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps) Bluetooth: High Definition 5.0 (44/16)
HIGH QUALITY STREAMING Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect, vTuner
SUPPORTED AUDIO FORMATS Up to PCM 32bit/384kHz DSD256 (DSF, DFF) AIFF (.aif, .aiff, .aifc) ALAC WAV (.wav) packed/unpacked FLAC MP3 Apple Lossless OGG Monkey’s
SUPPORTED MEDIA SERVERS All UPnP* DLNA Roon *UPnP server must support DSD streaming in order to stream DSD files.xt goes here
-
DIGITAL INPUTS 1x RCA coaxial PCM up to 24bit/192kHz 1x AES/EBU balanced PCM up to 24bit/192kHz 2x TOS-Link PCM up to 24bit/192kHz 1x USB-B asynchronous up to DSD512 and PCM up to 32bit/384kHz 1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives)
ANALOGUE INPUT 1x 3.5mm mini-jack (input impedance 10kΩ)
AUDIO OUTPUTS DAC 1x unbalanced RCA 2Vrms 1x balanced XLR 2Vrms
AUDIO OUTPUTS PREAMP 1x unbalanced RCA 1x balanced XLR 1x headphone 6,3mm jack on front panel (double gain)
OUTPUT IMPEDANCE 50Ω
-
DIMENSIONS 200mm W | 80mm H | 260mm D
WEIGHT Kg. 4 – net Kg. 5 – boxed
-
1.) DS-10 EVO
Streaming resolution: up to PCM 32/384kHz and DSD256
Firmware update OTA (Over The Air)
Wi-Fi Dual Band (10/433Mbps)
Compatible with Tidal Connect2.) DS-10 EVO LINE
Streaming resolution: up to PCM 32/384kHz and DSD256
Analogue input (3.5mm mini-jack)
Firmware update OTA (Over The Air)
Wi-Fi Dual Band (10/433Mbps)
Compatible with Tidal Connect -
Multifunctional remote control included
Full control via GN Control APP available for iOS and Android
-
EXTERNAL POWER SUPPLY - PSU-10 EVO External Inductive Power Supply
Improvement to DS-10 EVO and DS-10 EVO LINE
